Multi-mode Pump Laser Diode Driver (Turn-key solution)

This Device is specially developed for applications involving multimode pumping. User can place their MM pump laser (uncooled, 2-pin) over the heatsink and solder to the leads provided. Tuning knob and current display in front-pannel will be used for adjusting the drive current precisely. This device comes in three versions OEMMD-10A, OEMMD-15A and OEMMD-20A, for upto 10A, 15A and 20A current driving respectively.




Parameter Value Unit
Output current (max) 10, 15, 20 A
Power adjustment Front pannel knob -
Temperature control Heat sink -
Display Drive current -
Power supply 110-120 VAC/60 Hz, 220-240VAC/50Hz -
Operating temperature 15-40 °C

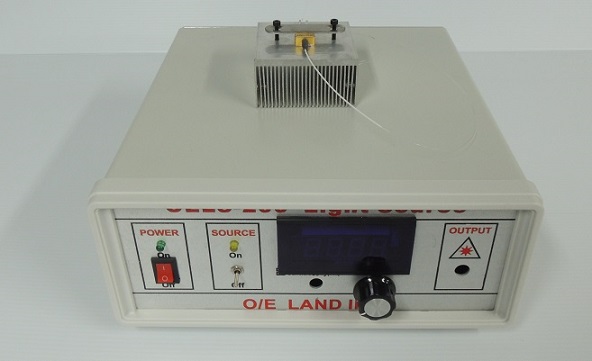

Figure 1: MM pump laser diode driver

Note: All specifications are subject to change without notice
