Pulsed Laser Diode Driver

(via computer control)

The OEPLD-100 is pulsed laser diode driver that can operate as a stand-alone device, or with a computer via a USB 2.0 port. This driver comes with a user friendly software interface to allow the user to input or modify the pulse width, frequency or output current. In addition to the regular pulse driving, there are some special features like inter-pulse frequency sweeping and current modulation.

Figure 1: Pulsed Laser Driver

Figure 1: Pulsed Laser Driver

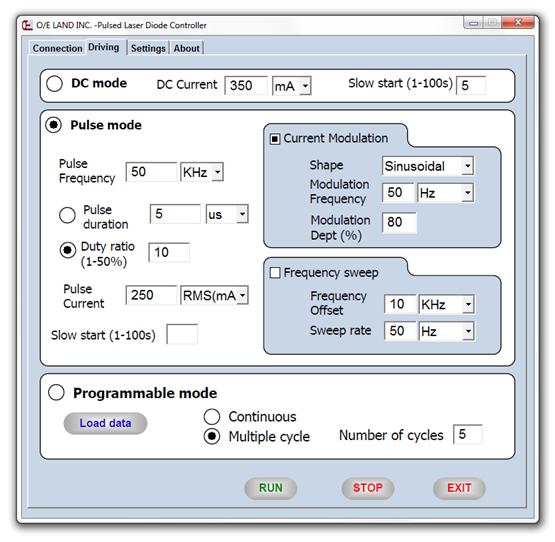

Figure 2: User Interface

Figure 2: User Interface

Specifications:


Parameter Unit Value
Maximum DC drive current mA 500
Maximum pulse drive current (peak) mA 1000
Maximum pulse rate MHz 10
Minimum pulse width ns 5
Communication interface - USB 2.0
Power supply - 7-12 VDC
Dimension mm 95 x 75

Features:
