Optical Linear Filter (Transmission Type)

Our optical fibre linear filter is a transmission type linear filter with a transmission range from 10% to 90%. With model number OEOLF-100, the optical fibre linear filter is packaged by our advanced micro optics package technology. The spectrum of OEOLF-100 has a linearly shaped optical transmission spectrum. Two standard bandwidths of 7 nm and of 50 nm at 1550 nm range can be shipped immediately. linear filter of custom wavelengths and bandwidths are also available on demand. The bandwidth of the optical linear filter can be from a few nanometres to a few hundreds of nanometres.

Applications

Features

Specifications of OEOLF-100


Parameter Unit Value
Configuration Type - 1 x 1
Wavelength Range nm 7, 50, or custom
Low Transmission at Wavelength 1 % 10
High Transmission at Wavelength 2 % 90
Dynamic Range % 80
Insertion Loss dB < 1.5
Polarization - S & P
Linearity Tolerance % < ± 2.5
Connectory Type - FC/PC
Package Size (D x L) mm 8 x 50
Operating Power mW ≤ 500
Operating Temperature °C 0 - +60
Storage Temperature °C -20 - +70

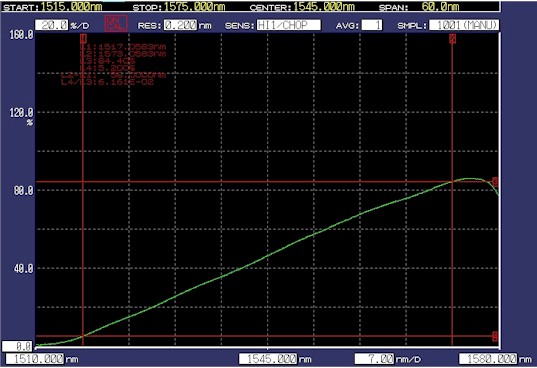

Figure 1: Optical Spectrum of OEOLF-100-1550nm-50nm

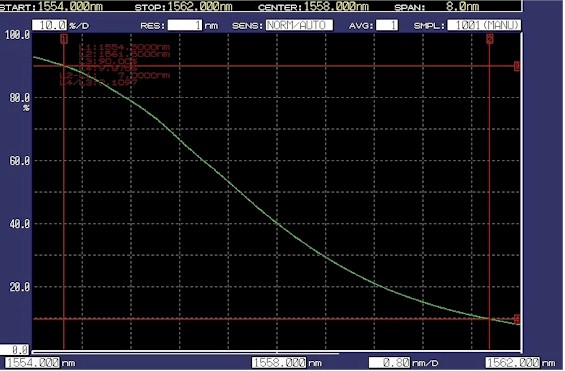

Figure 2: Optical Spectrum of OEOLF-100-1550nm-7nm

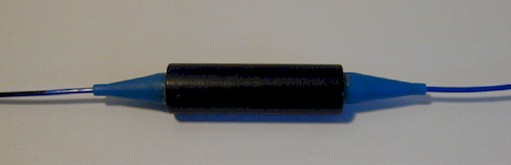

Figure 3: OEOLF-100 Module


Note: All specifications are subject to change without notice
