Polarization Controller

(400 nm - 2400 nm)

The U-Bench based fiber polarization controller, with model number OEFPC-100, has two to three rotation optics mounts between the two collimators and it can be used to control the beam polarization state. For example, the first 1/4 wave plate can change a circularly polarized beam into a linearly polarized beam. You can also insert a 1/2 wave plate to change linearly polarization orientation and a 1/4 wave plate can change a linear polarization beam into a circularly polarized beam or to do any type polarization control function.

Specifications of OEFPC-100:

Parameter Unit Value
Gap mm 30 - 135
Dimensions (L x W x H) mm 110 x 70 x 85
Beam Size mm 1.0 - 3.0
Beam Centre Height mm 49
Working Wavelength nm 300 - 2500
Connector Type - FC/PC, FC/APC
Working Temperature °C 0 - 70
Storage Temperature °C -20 - +80

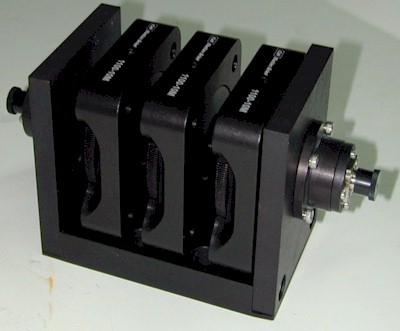

Figure 1: U-Bench Polarization Controller (OEFPC-100) with Two 1/4 Wave Plates and one 1/2 Wave Plate

Note: All specifications are subject to change without notice
