Fibre Grating Accelerator Sensor

A new, low cost fibre grating accelerator sensor is now available at O/E LAND INC. Based on our advanced fibre Bragg grating and package technology, the fibre accelerator sensors with model number OEFAS-100. Fibre grating accelerator sensors are used to measure vibration in bridges, high buildings, dams, and railways, for example.

Model number: OEFAS-100

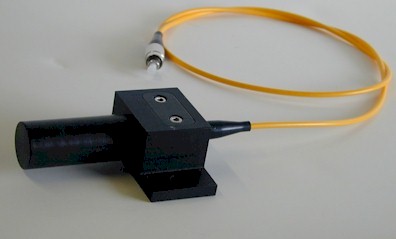

Figure 1: Fibre Accelerator Sensor

Specifications of OETMS-100A and OETMS-100B:


Parameter Unit Value
Range G 1 - 10
Frequency Hz < 50
Resolution % F.S. < 0.2
Precision % < 1
Size (width x length x height) mm 30 x 50 x 150
Fibre output - Single or double
Operation temperature °C 0 - 80

Applications:


Fibre Bragg grating temperature sensors with any wavelength can be delivered in a short time. Low cost product, quick delivery time, high reliability and good performance are our products' main features.


Note: All specifications are subject to change without notice
