Low-cost Swept Laser Source for Sensor Applications

Based on our patent in pending tuneable filter and swept laser technology, we announce a new low-cost swept laser in 1550 nm, 1310 nm or 1060 nm range. This swept laser source with model number of OESLS-200 is intended for a wide range of applications including fiber sensor systems, fiber component testing, biomedical, spectroscopy instrumentation, etc. With custom wavelength reference, signal acquisition become much simple and easy. Low-cost feature gives system integrator a big advantages in marketing and application.

This unit is controlled by a computer in a user-friendly interface through the USB port and the scanning speed is programmable. This product is available as turn-key solution or OEM.

Applications

Features

Specifications


Parameter Unit Value
Centre Wavelength nm 1550, 1310, 1060
Wavelength Tuning Range nm > 60
Repetition rate (Max) Hz 100
Output Power mW > 5 (optional HP)
FWHM nm < 0.05
Output Polarization - Unpolarized
SMSR dB > 40
Fibre Output - SM/PM
Connector - FC/APC, FC/PC
Interface - USB 2.0
Operational Temperature °C 10 - 50
Dimensions mm 170 x 50 x 280

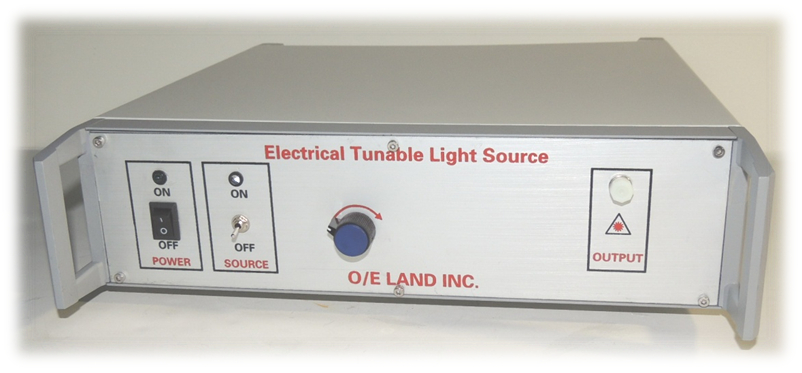

Figure 1: Low Cost Swept Fiber Source for Sensor Applications
Figure 1: Low Cost Swept Fiber Source for Sensor Applications

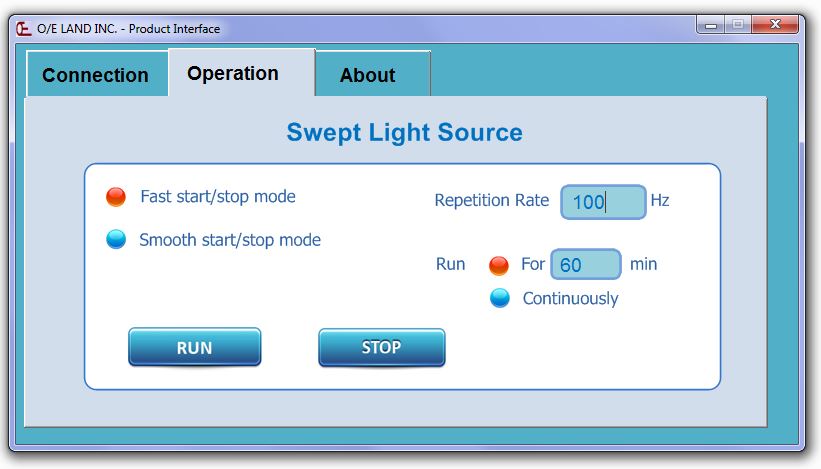

Figure 2: User Interface for Low Cost Swept Fibre Laser
Figure 2: User Interface for Low Cost Swept Fibre Laser

Note: All specifications are subject to change without notice.
