1310 nm Tunable External Cavity Laser Source

The tunable external cavity fiber laser for the 1300 nm band, with model number OETLS-300-1310, can perform continuous, mode-hope-free scanning over a 80 nm tuning range. The laser is controlled by a computer with a user-friendly interface through the USB port. The tuning speed, resolution and the scanning range can be easily set in the interface window. This compact, rugged laser provides high side-mode suppression ratio (SMSR) and excellent linear wavelength-scanning, which is a cost-effective OEM solution for system integration applications as well as laboratory purposes.

Features

Specifications:


Parameter Unit Value
Center wavelength nm 1300 ± 10
Tuning range nm 80
Wavelength resolution pm ~ 10
Wavelength repeatability pm ± 20
Wavelength stability pm ± 30
Tuning speed nm/s 13
Peak output power mW > 20
Output power over the tuning range mW > 10
Output bandiwth pm < 50 (< 10 MHz option available)
Output polarization state - Linear or Random
SMSR dB > 50
Interface - USB
Operating temperature °C 10 - 70
Dimensions mm 120 x 180 x 50 (OEM), 250 x 250 x 110 (Turn Key)
Weight kg < 1.0

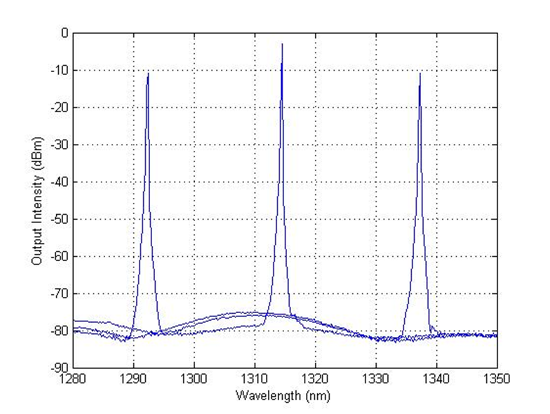

Figure 1: Measured output from OETLS-300-1310

Interface:

The main windows of the interface look like Fig. 2, where user can easily control the device parameters (such as: resolution and tuning speed), set the target wavelength and scan (multiple or continuous) between two specified wavelengths. The device could also be completely re-calibrated by the user in the provided calibration window if necessary.

Figure 2: Tunable laser Interface


Note: All specifications are subject to change without notice
