Fiber Patch cords

Fiber Patch cords Specifications:

Fiber Type Operation Wavelengths
Single Mode Fiber  400nm - 600nm 633nm - 770nm 780nm - 970nm 980nm 1060nm - 1620nm
  Fiber Core Size
Multi mode Fiber 50um 62.5um 100um - 105um 200um 400um - 800um
  Fiber Core Size
Plastic Fiber  250um 500um 750um 1000um 2000um - 3000um

Patch cord Cable Size: 0.9mm, 2.0mm, 3.0mm

Patch cord Type: standard, armored

Patch cord Color: red, yellow, blue, orange, green

Connector Types:  FC/PC, FC/APC, ST, SC, SMA

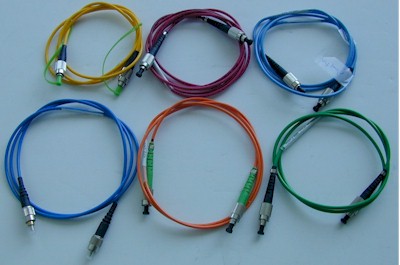

Figure 1. Different Color Fiber Patch cords
