Elecrical and Manual Variable Optical Delay Line


The Variable Optical Delay Line is designed for controlling the optical path delay precisely. These devices are based on based on our unique optical alignment technology. Manual optical delay lines with model number OEVDL-50, OEVDL-100 and OEVDL-200 will provide 25 mm, 50 mm and 100 mm air-path variation, corresponding to optical delays of up to 165 ps, 330 ps, and 650 ps respectively. Corresponding electrical version are available with model numbers OEVDL-50E, OEVDL-100E and OEVDL-200E. This product is an ideal solution for network equipment, test instrument and lab testing applications.

Applications

Features

Specifications (Manual)


Parameter Unit Value
OEVDL-50 OEVDL-100 OEVDL-200
Operating Wavelength nm 600 - 1600
Bandwidth nm 100
Optical Delay range ps 0 - 165 0 - 330 0 - 650
Insertion Loss dB < 1.5
Resolution ps 0.2
Return Loss dB > 50
Power Handling mW 500
Fibre Type - SM, PM
Dimensions (Width x Length x Height) mm 30 x 120 x 30 30 x 50 x 150 30 x 50 x 150
Operating temperature °C 0 - +50
Storage Temperature °C -40 - +70

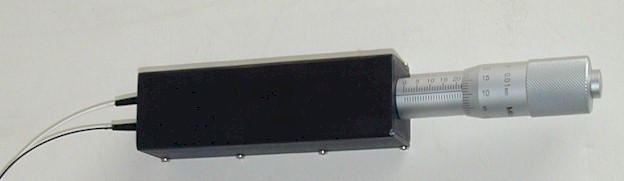

Figure 1: Manual Tunable Delay Line
Figure 1: Manual Tunable Delay Line

Specifications (Elecrical)


Parameter Unit Value
OEVDL-50E OEVDL-100E OEVDL-200E
Operating Wavelength nm 600 - 1600
Bandwidth nm 100
Optical Delay range ps 0 - 165 0 - 330 0 - 650
Insertion Loss dB < 1.5
Resolution ps 0.2
Return Loss dB > 50
Power Handling mW 500
Fibre Type - SM, PM
Dimensions (Width x Length x Height) mm 60 x 120 x 25
Operating temperature °C 0 - +50
Storage Temperature °C -40 - +70

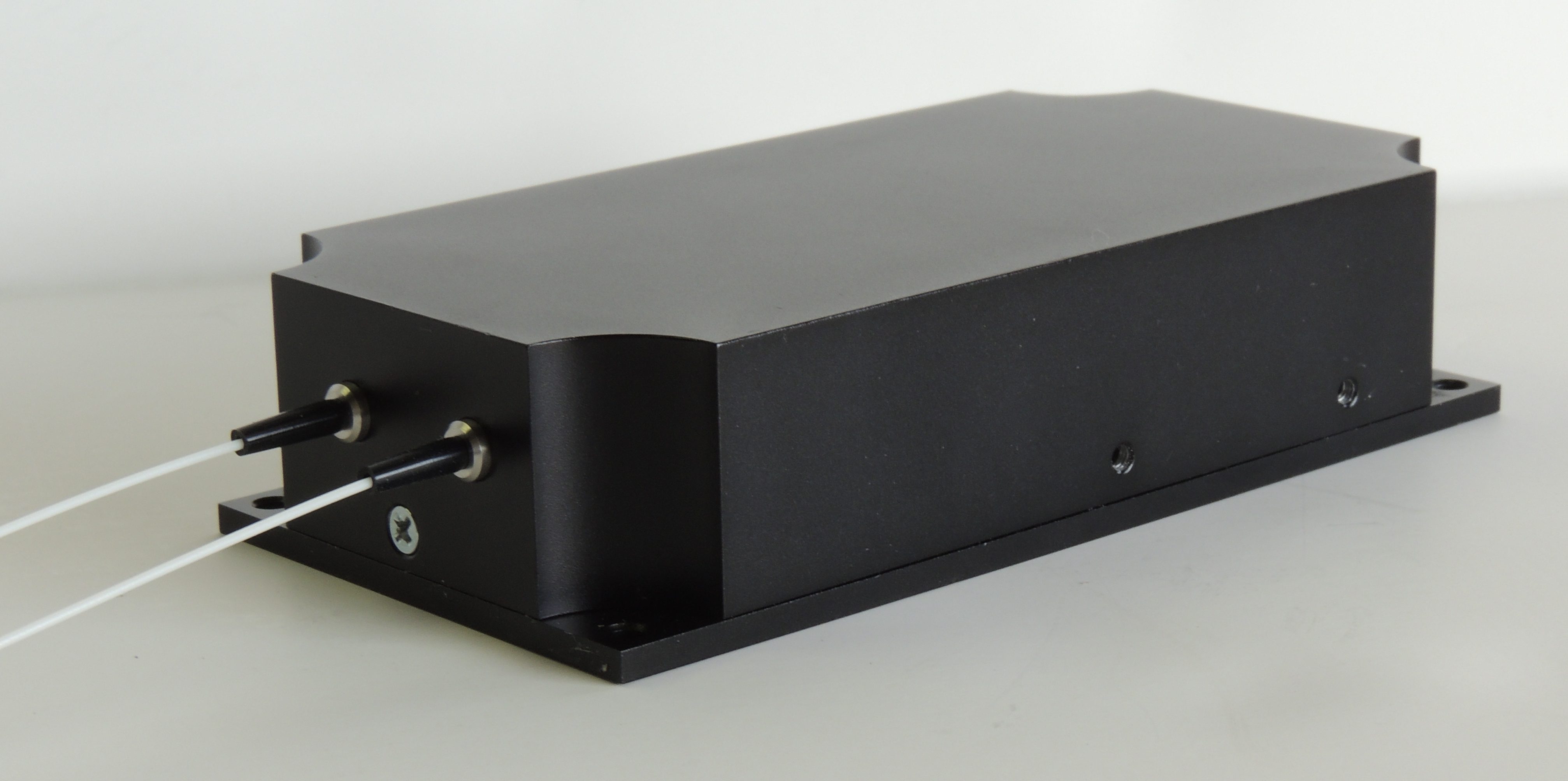

Figure 2: Electrical Tunable Delay Line
Figure 2: Electrical Tunable Delay Line


Note: All specifications are subject to change without notice
