Fiber Array Product

for PM, SM and MM fiber

The fiber array is produced by placing fiber in the high precision silicon V-Groove with another flat or V-Groove chip on top of it.  The end face of the fiber array is optical polished. The fiber array is a key component for waveguide, AWD, LD array, optical switch coupling.

Features:

  • High precision of fiber channel position

  • Standard 2, 4, 8, 16, 32 channel product

  • Customer product available

  • Angle polish available

  • Connector optional

  • Single mode, PM fiber or multimode fiber

  • Quickly delivery time and cost effective

  • Full engineering support

Model number:   OEFAP - 08( 16, 32)

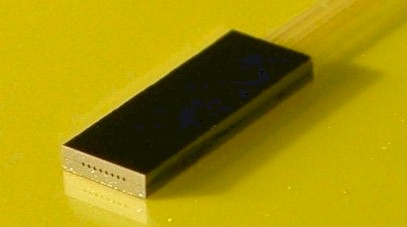

       Figure 1. Standard 8 channel SM fiber array

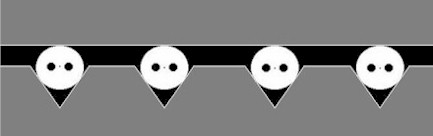

     Figure 2.  A 4 channel PM fiber array with fast axis alignment

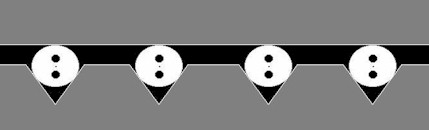

    Figure 3.  A 4 channel PM fiber array with slow axis alignment



We have unbeatable low price for this product.

To download the catalog click here

  • price is updating, please make a request for our most recent price by calling (514)334-4588 or by
    emailing sales@o-eland.com

Note: All specifications are subject to change without notice.
