Thermally Expanded Core (TEC) Fiber

The OETEC-100 TEC fiber is made by locally heating (in a prescisely contolled enviorment) the standrad fiber such that the mode filed diameter (MFD) is expanded. Fundamental mechanism behind this process is thermal diffusion of dopant ion. Since 'V-number' remain constant in a thermal diffusion, TEC fiber made from a single-mode fiber is single-mode in nature.

Applications:

• Fiber coupling
• Mode-matching
• High-power fiber components
• Fiber laser

Features:

• Low loss
• Stable performance
• Custom features
• Mode-matching
• AR coating (optional)
• Packaging (optional)

Specifications

Specifications



Parameter	Unit	Value
Fiber type	-	SMF, PM, MMF
Core expansion	%	upto 50
TEC length	mm	< 2
Connector	-	FC/PC, FC/APC
Packaging	-	Glass ferrule

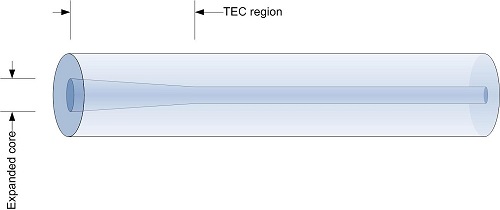

Figure 1: Structure of TEC fiber



Note: All specifications are subject to change without notice.
