Fibre Grating Array

O/E LAND INC. has developped a strong expertise in the writing of multi-gratings arrays; we can write from 2, 3, 4, 6, up to 16 fibre gratings arrays in a single fibre, without without the need for splices. Fibre grating arrays can also be called multi-gratings arrays. Fibre Bragg grating arrays can be used in DWDM, CWDM optical systems to add or drop multiple channels simultaneously. Fibre grating arrays can also be used in sensors and for instrumentation purposes. The figures below display the spectra of several customized fiber Bragg grating array examples:

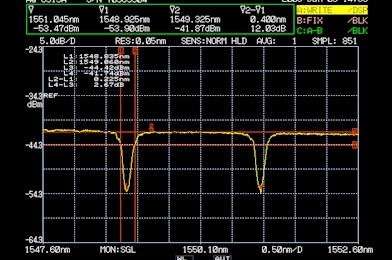

Figure 1: Transmission Spectrum of Two Fibre Grating Array

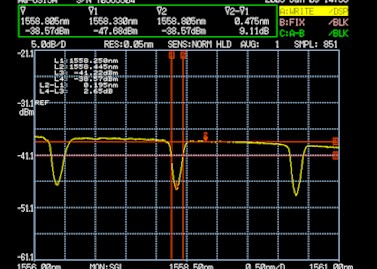

Figure 2: Transmission Spectrum of Three Fibre Grating Array

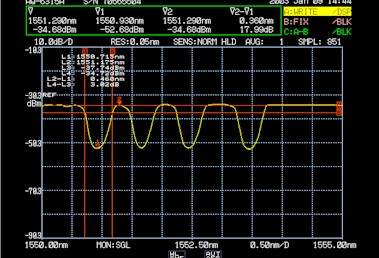

Figure 3: Transmission Spectrum of Four Fibre Grating Array

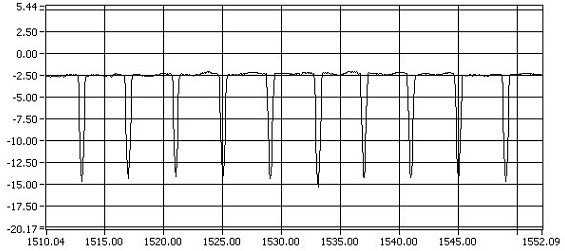

Figure 4: Transmission Spectrum of ten Fiber Grating Array


To manufacture and market fiber Bragg grating products, you need a fiber Bragg grating license. O/E LAND INC. has full License Agreement from CRC/UTC Fiber Bragg Grating Technologies Portfolio. Customers who use fiber Bragg gratings or incorporate fiber Bragg gratings with their own products must buy fiber Bragg grating from a manufacturer having a fiber Bragg grating license.

Note: All specifications are subject to change without notice.
