Other types of fiber Bragg Grating

O/E LAND INC is capable to provide wide range of customized fiber gratings for R&D prototype and mass production purposes. fiber grating wavelengths can range from 400 nm to 2175 nm. We offer many types of custom made fiber Bragg gratings like:

• Uniform fiber Bragg grating (OEFBG-UNI-100)
• Chirped fiber Bragg grating(OEFBG-CHR-100)
• FBG in single mode fiber, multimode fiber, PM fiber, doped fiber, double cladding fiber
• Tilted FBG (blazed FBG)(OEFBG-UTI-100 or OEFBG-CTI-100)
• Phase shifted FBG
• Linear FBG (OEFBG-LIN-100)
• Transmission type FBG
• Apodized FBG
• Multiple FBGs in a single fiber

Examples:

Broadband reflection mirror:(OEFBG-BBM-100)

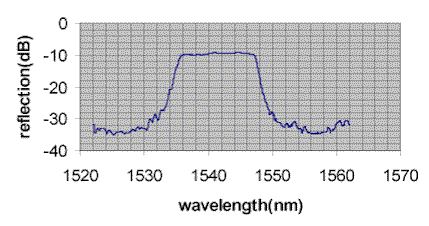

Figure 1: Reflection spectrum of broadband mirror fiber grating

Linear Shape Fiber Bragg Grating:(OEFBG-LIN-100)

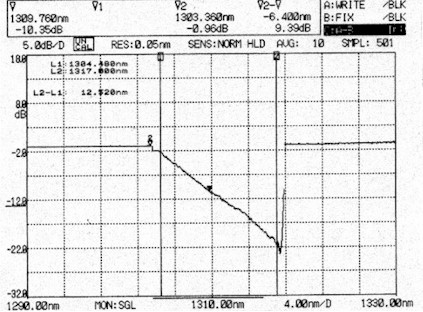

Figure 2: Linear shape transmission spectrum of a fiber Bragg grating

Tilted fiber Bragg Grating:(OEFBG-UTI-100 or OEFBG-CTI-100)

Figure 3: Transmission Spectrum of tilted fiber grating (blazed FBG)

Fiber Bragg grating in multimode fiber:(OEFBG-MMF-100)

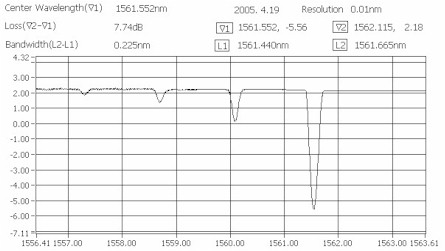

Figure 4: Transmission spectrum of fiber grating in multimode fiber

Ultra-Broadband (60 nm bandwidth) Reflection Mirror:(OEFBG-UBM-100)

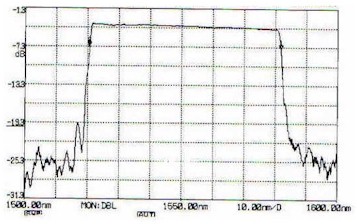

Figure 5: Reflection spectrum of ultra-broadband (60 nm) reflection mirror fiber grating

Phase shift fiber Bragg grating:(OEFBG-CPS-100)

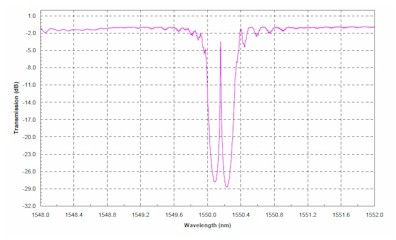

Figure 6: Transmission spectrum of phase shifted fiber grating

Features:

• Quick delivery
• Full engineering support
• Cost effective

To manufacture and market fiber Bragg grating products, you need a fiber Bragg grating license. O/E LAND INC. has full License Agreement from CRC/UTC Fiber Bragg Grating Technologies Portfolio. Customers who use fiber Bragg gratings or incorporate fiber Bragg gratings with their own products must buy fiber Bragg grating from a manufacturer having a fiber Bragg grating license.
