Short Path Gas Cell
The short path gas absorption cell, with model number OECEL-100-150 is a gas sample accessory for infrared gas sensors, like Fourier transform infrared spectrometer, to detect most common gases. It has many advantages like simple structure, small cell body volume, high light transmission, light weight, high strength, low cost, and user friendliness. It can meet most of the requirements from universities, research institutes and companies for their qualitative and quantitative analysis of gas samples routine test and characterization.
.jpg)

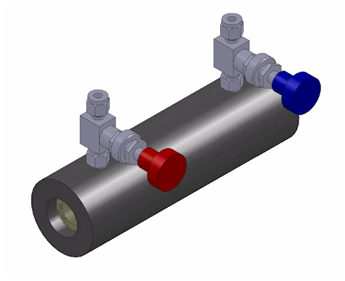

Figure 1: Short path gas cell
Specifications of OEGSS-100
| Parameter | Unit | Value | ||
|---|---|---|---|---|
| ZnSe window | KBr window | CaF2 window | ||
| Spectrum range | cm-1 | 550 - 10 000 | 400 - 10 000 | 1000 - 10 000 |
| Optical path | mm | 150 | ||
| Gas volume | ml | 40 | ||
| Operation pressure | MPa | < 0.17 | ||
| Light transmission | % | > 45 | > 80 | > 80 |
| Center height | mm | 75 - 100 | ||
| Dimension | mm | 130 x 130 x 200 | ||
Features
- Infrared technology
- Low cost
- Digital signal process
- High sensitivity
- Small footprint
- Rasy to operate
Note: All specifications are subject to change without notice
