Polarization Extinction Ratio Measurement Setup
Our extinction ratio measurement (ER) setup, OEPAS-ERM-100, is a simple and efficient polarization measurement solution for photonics labs. This userfriendly systems is available for wide range of opto-mechanical specifications.
Applications
- Optical test and mesurement
- Optical alighment
- Instrumentation
- R&D
Features
- Custom specifications
- Wide wavelength range
- User friendly
Specifications
| Parameter | Unit | Value |
|---|---|---|
| Wavelength Range | nm | 300-2400 |
| Bandwidth | nm | upto 1000 |
| Extinction ratio | dB | >30 |
| Connector | - | FC/PC, FC/APC receptacle |
| Power handling | mW | upto 500 |
| Operating Power | mW | ≤ 500 |
| Operating Temperature | °C | 0 - +60 |

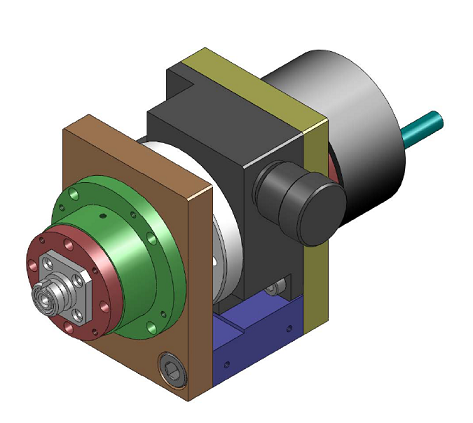

Figure 1: OEPAS-ERM-100 Setup
Note: All specifications are subject to change without notice
